The design process encompasses the architectural design, the development of the structural concept , the analysis of the steel structure and the verification of members. Steel solutions are lighter than their concrete equivalents, with the opportunity to provide more column-free flexible floor space, less foundations and a fast, safe construction programme.

For the designer, a steel solution means reliable materials, assured material and section properties, precise off-site manufacture and extensive support including software, design guides and easy to use resistance tables.

[top]Design process

Main articles: Concept design, Steel material properties

The fundamental process of structural design commences with the preparation of a structural concept, which is itself based on an architectural design for the structure. For simple, common forms of structure, it will be possible to prepare a concept design directly from the architectural design - typical solutions are well understood.

For more complex structures, or innovative designs, best practice is to develop the structural concept in conjunction with the architectural scheme, so that an efficient, appropriate solution can be developed.

Once the concept design has been established, the structural design can be completed, involving determination of loads, frame analysis and member verification.

[top]Steel design

Steel is ideally suited for design. Material properties are known and member properties are accurate, meaning that analysis is precise. Design rules are clear and mature, without undue conservatism, having been developed over many decades. There is a wealth of support resources, including software, to facilitate efficient design.

[top]Concept design

Main articles: Concept design, Steel material properties, Multi-storey office buildings, The case for steel, Service integration

The choice and design of the primary structure is a fundament part of the concept design of buildings, and ideally should be integrated with the development of the architectural design. Meeting client, planning and Building Regulation requirements are paramount, but there will be a range of structural forms that meet these requirements, each with its own advantages. The merits of different structural forms should be reviewed against the requirements for the structure. Key considerations include:

Principal structural elements of a multi-storey building
  • Cost and speed of construction
  • Building height and plot ratio
  • Future flexibility and adaptability
  • Site constraints including ground conditions
  • The need for special structural arrangements in public spaces or circulation areas
  • Floor grids and dimensional coordination with the planning grid
  • Structural construction depth (ceiling to floor level)
  • Servicing strategy and its coordination and integration with the structure (horizontally and vertically)
  • Floor loadings
  • Fire resistance
  • Sustainability requirements.

Minimising embodied and operational carbon is an important driver in construction. Structural solutions to minimise carbon include (where appropriate):

  • Designing for the appropriate imposed loads
  • Design members to reach their full utilisation
  • Reusing steelwork
  • Specifying higher strength steel
  • Minimising section weights by utilising semi-continuous construction
  • Using cross laminated timber (CLT) as a substitute for concrete

The principal structural elements of a typical multi-storey building comprise floors, beams and columns. A wide variety of alternative forms and arrangements can be used in multi-storey steel framed structures to deliver the benefits of:

[top]Factors affecting choice of structural system

Main articles: Long-span beams, Floor systems, Service integration, Braced frames, Continuous frames, Simple connections, Moment resisting connections, Steel construction products, Composite construction, Facades and interfaces

Floor grids define the spacing of the columns in orthogonal directions, which are influenced by:

  • The planning grid (typically based on multiples of 0.6 m, 1.2 m or 1.5 m)
  • The column spacing on the facade, to suit the external envelope (typically 5.4 m to 7.5 m)
  • The intended use of the internal space
  • The requirements for building services distribution.

The British Council for Offices (BCO) Guide to Specification[1] provides extensive guidance on the preparation of scheme designs.

For naturally ventilated offices, a building width of 12 m to 15 m is typically used, which can be achieved by two spans of 6 m to 7.5 m, with a column placed adjacent to a central corridor. Natural lighting also plays a role in choice of the width of floor plate. In larger buildings, a long-span solution provides a considerable enhancement in flexibility of layout. For air conditioned offices, a clear span of 15 m to 18 m is often used.

Floor-to-floor height will be an important consideration at the concept design stage. The table below gives typical floor to floor heights for buildings of different use.

Typical floor-to-floor heights
Prestige office 4 - 4.2 m
Speculative office 3.6 - 4.0 m
Renovation project 3.5 - 3.9 m

If planning restrictions limit overall building height, shallow floor solutions may be adopted, or solutions that involve integrating the services within the structural depth. Typical structural depths for different types of construction are given in the table below.

Typical structural depths (ceiling to floor)
Composite beam construction 800 mm - 1200 mm
Cellular beams (with service integration) 800 mm - 1100 mm
Precast concrete floors (7.5 m span) 1200 mm - 1200 mm
Precast concrete floors (14 m span) 1450 mm - 1450 mm
Shallow floor system or integrated beams 600 mm - 800 mm

[top]Stability systems

Typical bracing in a multi-storey frame

The structural system required for stability is primarily influenced by the building height. For buildings up to eight storeys height, the steel structure alone may be designed to provide stability, but for taller buildings, concrete or braced steel cores are more efficient structurally. The following structural systems may be considered for stability.

[top]Braced frames

For buildings up to eight storeys high, braced steel frames are commonly used with bracing members generally located within a cavity in the facade, or around stairs or other serviced zones.

A steel braced frame has three key advantages:

  • A braced solution is less expensive than a continuous frame
  • Responsibility for temporary stability lies with one organisation
  • As soon as the steel bracing is connected, the structure is stable.

[top]Continuous frames

For buildings up to four storeys high, continuous frames may be used in which the multiple beam to column connections provide bending resistance and stiffness to resist horizontal loads. This is generally only possible where the beams are relatively deep (400 mm to 500 mm) and where the column size is increased to resist the applied moments. The connections between members are likely to be more expensive than those in braced frames.

[top]Concrete or steel cores

Concrete cores are the most practical system for buildings of up to 40 storeys high, with the concrete core generally constructed in advance of the steel framework. In this form of construction, the beams often span directly between the columns on the perimeter of the building and the concrete core. Special structural design considerations are required for:

Braced steel cores may be used as an economic alternative where speed of construction is critical. Such cores are installed with the rest of the steelwork package. An example of a braced steel core is shown in the figure above middle.

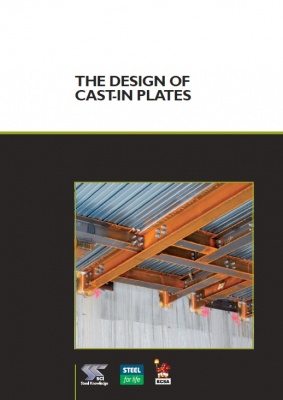

Guidance for the design of cast-in steel plates for connecting structural steel beams to concrete core walls is available in SCI-P416. This publication provides a model for the design of simple connections that transfer shear force due to permanent and variable loads and a non-coincident axial tie force resulting from an accidental load case. It points out additional issues which must be considered where coincident shear forces and axial forces are to be dealt with. A sample design of a simple connection for a 610 serial size UB is presented, and the design of punching shear reinforcement for the wall is included. The guide discusses the responsibilities of the building structural engineer and the steelwork contractor and suggests where the responsibilities are best divided. It also considers the impact of deviations between the theoretical positions of the parts of the connection and their as-erected positions.


Columns in multi-storey steel frames are generally H sections , predominantly carrying axial load. When the stability of the structure is provided by cores, or discreet vertical bracing, the beams are generally designed as simply supported. The generally accepted design model is that nominally pinned connections produce nominal moments in the column, calculated by assuming that the beam reaction is 100 mm from the face of the column.

For ease of construction, columns are usually erected in two, or sometimes three storey sections, i.e. approximately 8 m to 12 m in length. Column sections are joined with splices , typically 300 mm to 600 mm above the floor level.

S460 column sections are available, which should be considered for multi-storey buildings. The higher strength and more advantageous buckling curve for S460 sections mean that smaller, lighter sections may be selected compared to lower strength alternatives.

[top]Floor systems

A wide range of floor solutions is available. Although steel solutions are appropriate for short spans (typically 6 m to 9 m), steel has an important advantage over other materials in that long-span solutions (between 12 m and 18 m) can be easily provided. This has the key advantage of column-free space, allowing future adaptability, and fewer foundations.

Floors spanning onto the steel beams will normally be either precast concrete units, or composite floors. The supporting beams may be below the floor, with the floor bearing on the top flange (often known as "downstand" beams), or the beams may share the same zone with the floor construction, to reduce the overall depth of the zone. The available construction zone is often the determining factor when choosing a floor solution.

Typical floor solutions
Form of construction Typical solution
Low rise, modest spans, no restriction on construction depth Downstand beams precast units or composite floors
Modest spans (less than 9 m), restricted construction depth Integrated solutions – precast or composite floors
Low rise, long span (e.g. 15 m) Downstand beams in the façade. Composite floors with secondary steel beams spanning 15 m
Medium and high rise, modest spans, no restriction on construction depth Downstand beams, composite construction
Medium and high rise, long spans (to 18 m) restricted construction depth Composite floors with cellular long span secondary steel beams

The span range of various structural options in both steel and concrete are shown in the table. Long-span steel options generally provide for service integration for spans of over 12 m. Cellular beams and composite trusses are more efficient for long-span secondary beams, whereas fabricated beams are often used for long-span primary beams.

Typical spans for various floor systems

Long-span beams have gained in popularity in the commercial building sector because they offer the following benefits in design and construction:

  • Internal columns are eliminated, leading to more flexible and efficient use of internal space
  • Services can be integrated within the depth of the structure, and so the floor to floor depth is not increased
  • Fewer components are required (typically 30% fewer beams) leading to reduced construction and installation time
  • Fire protection costs can be reduced due to the massivity (weight : exposed profile) of the longer span members
  • Steelwork costs are not increased significantly, despite the longer spans.


In inner city and on difficult or brownfield sites, the time and cost of constructing the foundations has a major effect on the viability of a project. Although the weight of the frame is relatively small compared with the floors and walls, a steel frame can be significantly lighter than a comparable reinforced concrete frame. Further reductions in weight can be achieved by using light floor construction such as composite metal deck floors and lightweight concrete.

Difficult ground conditions may dictate the column grid. Long spans may be required to bridge obstructions in the ground. More generally, widely spaced columns reduce the number of foundations, simplifying the substructure construction and reducing cost.

[top]Integration of building services

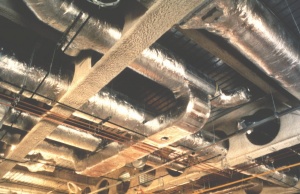

Services integrated with a cellular floor beam

Service runs can be integrated within the depth of the structure or separated by fixing them at a lower level.

Separation of zones usually requires confining the ducts, pipes and cables to a horizontal plane below the structure, which will increase the overall floor construction. However, the services remain readily accessible for maintenance and future refitting.

Integration of services and structure reduces the construction depth but requires a perforated structure; installation and subsequent refitting of services may be more difficult.

[top]External envelope

Cladding systems that are used in multi-storey buildings depend on the building height and the degree of fenestration. Fully glazed facades are widely used, although provision for solar shading generally has to be made. Cladding systems include:

Ground supported up to 3 storeys. Supported by stainless steel angles attached to edge beams for taller buildings.

Glazing systems
Generally triple glazing or double layer facades supported on aluminium posts or glass fins.

Curtain walling
Aluminium or other lightweight facade that is attached to the perimeter steelwork.

Insulated render or tiles
Cladding system supported on light steel infill walls, mainly used in public sector buildings and residential buildings.

The external skin of a multi-storey building is usually supported off the structural frame. In most high quality commercial buildings, the cost of external cladding systems greatly exceeds the cost of the primary structure. This influences the design and construction of the structural system in the following ways:

  • Reducing the floor zone may be cost-effective as it reduces the area of cladding.
  • The perimeter structure must provide a satisfactory platform to support the cladding system and be sufficiently stiff to meet any deflection criteria.

[top]Structural principles

Main articles: Modelling and analysis, Design codes and standards, Portal frames, Allowing for the effects of deformed frame geometry

Once the structural concept has been fixed, the structural design may be completed. The structural design process involves the following steps:

  • Calculating the permanent actions and determining the variable actions
  • Identifying the load paths that carry the applied actions (vertical and horizontal) to the foundations
  • Selecting preliminary sizes for members
  • Analysis of the structure, if necessary, to determine design effects on individual members and deflections
  • Analysis of the structure to assess sensitivity to second-order effects, allowing for these if necessary
  • Verifying the members by ensuring the design resistance exceeds the design effects
  • Verification of the members, and the frame, by ensuring the deflections do not exceed the limits given in the design Standard, or those specified by the Client.

[top]Variable actions

Characteristic variable actions include:

Characteristic variable actions should be determined from the appropriate parts of BS EN 1991-1[2] and the relevant UK National Annexes[3].

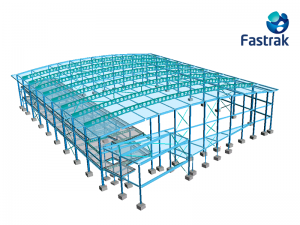

               Fastrak model - cellular beams.png
Model of a building constructed with cellular beams
(Fastrak model courtesy of Trimble)

For 'simple construction', frame analysis will not be necessary at the Ultimate Limit State (ULS), as the members can be designed in isolation. It may be necessary (or convenient) to use analysis software to determine the lateral deflections at the Serviceability Limit State (SLS) and when assessing frame stability. Analysis will be required for continuous frames.

Generally, elastic analysis is used. Plastic analysis (and elastic-plastic analysis) is generally only used for the design of portal frames .

Although manual methods of analysis may be used, most designers find it convenient to use readily available software .

Modelling members

Most software contains libraries of all the standard steel sections, with the associated member properties used in the analysis. Non-standard members may be modelled with equivalent section properties. Tapered or haunched members may be modelled with a number of short elements, each with different section properties. Curved members may be modelled with a series of straight members.

Modelling Joints

Common UK practice is to assume joints are either nominally pinned (and modelled as perfectly pinned) or nominally rigid (and modelled as perfectly rigid). It is then important to ensure that the physical details correspond to the design assumptions.

[top]Sensitivity to second-order effects

All frames experience second-order effects, typically because under lateral loads (or simply due to frame imperfections), the vertical loads are no longer concentric with the bases. The effect of this displacement is not accounted for in a first-order analysis. Some frames are sufficiently stiff such that second-order effects are small enough to be ignored. When second-order effects must be accounted for, this can be achieved by using second-order analysis, or by a simple amplifier of the lateral loads.

All frames must be assessed for sensitivity to second-order effects, and these effects allowed for if necessary.

[top]Design Standards

Main articles: Design codes and standards

The over-arching requirement for design in the UK is to satisfy the Building Regulations. Practically, design of steel structures will generally be in accordance with BS 5950[4] or the Eurocodes .

[top]Building Regulations

Building Regulations require that a safe structure be constructed. Although a series of design Standards are cited in the Regulations, there is no absolute requirement that the listed Standards are used for design.

[top]BS 5950

Although BS 5950[4] was withdrawn in March 2010, it is likely to be used for steel building design for a number of years. The advantages of design to BS 5950 include:

  • Familiarity with the Standard enjoyed by experienced designers
  • The extensive use of look-up tables within the Standard
  • The specific sections of the Standard devoted to particular building types, such as portal frames.


The Eurocodes are a set of unified structural design standards for use across Europe, developed by CEN (European Committee for Standardisation), to cover the design of all types of structures in steel, concrete, timber, masonry and aluminium.

In the UK, the Eurocodes are published by BSI under the designations BS EN 1990 to BS EN 1999; each of these ten Eurocodes is published in several Parts and each Part is accompanied by a UK National Annex (which must be used for construction in the UK) that adds certain UK-specific provisions.

In addition to the Eurocodes and the National Annex, non-contradictory complementary information (NCCI) is provided, to provide further guidance on the application of the Eurocodes.

[top]National Annexes

The National Annex (NA) is an essential document when using any Eurocode Part; the relevant NA covers the country where the construction will take place. Where the opportunity is given in the text of the Eurocode, the National Annex will:

  • Specify the value of factors, modify limiting values or formulae
  • Specify which design method may be used
  • Specify which options may be used, if they are given in the Eurocode
  • State whether an informative annex may be used - such annexes are explicitly identified as being open to National acceptance.
  • Identify NCCI.


The National Annex may give references to publications and other guidance containing non contradictory complementary information (NCCI) that will assist the designer when designing a structure to the Eurocodes.

The Eurocodes omit some design guidance where it is considered to be readily available in text books or other established sources. Publications that contain such design guidance may be referenced in the National Annex as NCCI.

Several 'Published Documents' (PDs) are available, published by BSI . These NCCI documents are informative, without the status of a Standard, but are generally helpful reference documents for designers.

[top]Basis of structural design

BS EN 1990[5] can be considered as the 'core' document of the structural Eurocode system as it establishes the principles and requirements for the reliability, serviceability and durability of structures. It also describes the basis for structural design and verification. The main sections of BS EN 1990[5] include:

  • Requirements
  • Principles of limit state design
  • Basic variables
  • Structural analysis and design assisted by testing
  • Verification by the partial safety factor method.

Designers will refer to BS EN 1990[5] (and its National Annex[6]) for load factors and combination factors, used when determining design combinations of actions (ULS loads).

[top]BS EN 1993-1 (Eurocode 3)

BS EN 1993-1 Eurocode 3: Design of steel structures comprises a set of general rules in twelve parts (BS EN 1993-1-1[7] to BS EN 1993-1-12[8]) for all types of steel buildings. The commonly used Parts include:

  • BS EN 1993-1-1[7]. This Part provides most of the general rules used in the design of steel buildings, including material properties, guidance on analysis, the assessment of second-order effects and the calculation of member resistances.
  • BS EN 1993-1-5[9]. This Part provides rules for members fabricated from plate, but also provides the rules for calculating the resistance of webs - typically verified under concentrated loads.
  • BS EN 1993-1-8[10]. This Part provides the design rules for joints. It includes rules for the resistance of joint components, such as bolts and welds.

Additional rules are provided in separate Parts for other structures, e.g. BS EN 1993-2[11] provides design rules for bridges.

A comprehensive range of design guidance is available for use in the UK, all incorporating the influence of the UK National Annexes.

[top]BS EN 1994 (Eurocode 4)

BS EN 1994[12] covers the design of composite structures and elements .

Guidance is available covering the design of composite floors in accordance with Eurocode 4 in SCI publication Composite design of steel framed buildings (P359).

[top]Common structural systems

Main articles: Braced frames, Continuous frames, Composite construction, Floor systems, Steel construction products, Long-span beams

Building frames may be broadly classified by their stability system, as braced or continuous frames . A portal frame is a particular type of a continuous frame. For multi-storey frames, a braced frame is likely to be most economical, because the fabrication effort for the joints in braced frames is generally much less than for joints in continuous frames. Continuous frames must be used when bracing cannot be provided within the structure.

Within both types of frame, a wide range of floor systems is available. Several floor systems utilise the benefits of composite construction , which will be the de facto solution for many structures. The floor systems in common use are briefly described in the following sections

[top]Composite construction

               Economic composite construction.JPG
Trapezoidal decking on downstand steel beams

Composite construction is the dominant form of construction for the multi-storey building sector. Its success is due to the strength and stiffness that can be achieved, with minimum use of materials, utilising the compressive strength of concrete and the tensile strength of steel. Composite floors offer significant advantages related to speed of construction and reduced overall construction depth.

Composite floor slabs generally use either relatively shallow profiled steel decking , typically spanning up to 3.75 m, or deep deck systems, spanning up to 9 m (if propped during construction). Composite floor slabs may also be constructed using pre-cast planks as the permanent formwork.

Floor slabs may be formed from pre-cast planks, but still allow the supporting beam to be designed as a composite member.

Composite beams involve the transfer of force between the steel section and the concrete which it supports, preventing slip and thus ensuring the two elements perform as a composite whole. For beams located wholly under the slab (known as "downstand" beams) the transfer of force is commonly achieved using headed shear studs, which are attached to the upper flange of the steel beam. Studs are usually welded on site, through the decking, to the (unpainted) top flange of the beam. Alternatively, smaller shear connectors may be shot-fired to the steel beam. In some forms of construction, the shear bond between the steel member and the encasing concrete is sufficient to provide composite action without additional shear connectors.

Different types of composite beam are available:

[top]Precast concrete units

Precast concrete units may be used in conjunction with steel beams. The units may be solid or hollow-core, and with tapered or bluff ends. They are normally prestressed. The steel beams and precast units may be designed as a composite member, provided specific detailing rules are satisfied to ensure the necessary composite behaviour.

Precast concrete floor slabs on a steel frame
(Image courtesy of Severfield (Design & Build) Ltd.)

[top]Integrated floor solutions

Integrated (or 'shallow') floors offer a range of benefits, including a reduced construction depth (compared to an orthodox "downstand" solution) and, in some solutions, a virtually flat soffit, allowing easy location of services.

A number of integrated floor solutions are available, including a range of rolled and fabricated options providing shallow depth members with wide bottom flanges, so that precast planks or steel decking can be placed on the bottom flange.

[top]Long-span beams

Long spans result in flexible, column-free internal spaces, reduced substructure costs, and reduced erection times. This broad range of benefits means that they are commonly used in a wide range of building types.

Long-span beam options include:

  • Composite beams with web openings
  • Cellular composite beams
  • Tapered girders.

The design of long-span steel and (steel-concrete) composite beams is generally carried out in accordance with BS 5950[4], BS EN 1993[13] or BS EN 1994[12]. For some types of beam this codified guidance is complemented by specific design guidance, such as that on the design of beams with large web openings, or manufacturers' software.


Long-span roof trusses, The Emirates Stadium, Arsenal Football Club, London
(Image courtesy of Severfield (UK) Ltd.)

Main article: Trusses

A truss is essentially a triangulated system of straight interconnected structural elements. The most common use of trusses is in buildings, where support to roofs, the floors and internal loading such as services and suspended ceilings, is readily provided. Trusses are commonly used in a range of buildings including airport terminals, aircraft hangers, sports stadia roofs, auditoriums and other leisure buildings . Trusses are also used to provide large column-free spaces in commercial buildings. The main reasons for using trusses are:

  • To span large distances
  • To provide a lightweight solution
  • To control deflection
  • To support heavy loads.

Trusses may be exposed within the structure and be fabricated from hollow sections for aesthetic appeal. Large loads may require the use of open sections (UKC, typically) or sections built up from plate. In all cases, the additional fabrication costs make trusses more expensive than conventional beam and column structures.

[top]Portal frames

Main articles: Portal frames, Moment resisting connections, Single storey industrial buildings

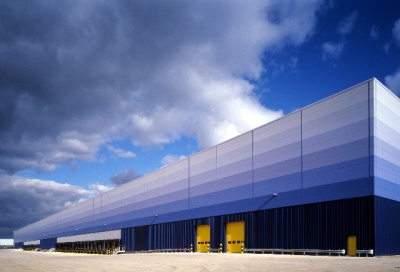

Portal frames are low-rise structures, comprising columns and rafters, connected by moment-resisting connections. The resistance to lateral and vertical actions is provided by the rigidity of the connections and the bending stiffness of the members, which is increased by a substantial haunch to reinforce the rafter sections where the bending moments are highest. This form of continuous frame is stable in its plane and provides a clear span that is unobstructed by bracing. Bracing is provided in the longitudinal direction, between frames.

Portal frames are structurally efficient and lightweight, accounting for over 90% of the single-storey market in the UK. Portal frames are used for industrial, storage , retail and commercial applications.

In addition to a primary steel structure, portal framed buildings also commonly include:

  • Secondary, thin gauge cold-rolled steel members (purlins and side rails) which restrain the primary steel members and support the cladding
  • Profiled steel wall and roof cladding.

[top]Member design to BS EN 1993

Main article: Member design

Steel member design is based on the requirements given in BS EN 1993-1-1[7] . The overall process in member design involves:

Member design is often completed using software, of by reference to the resistance tables in the 'Blue Book'.


Main articles: Cost planning through design stages, Braced frames, Continuous frames, Simple connections, Moment-resisting connections

The cost of connections is a significant proportion of the overall cost of the structure and the use of standardised, simple details is recommended wherever possible. Moment resisting connections will undoubtedly be more expensive than the nominally pinned connections used in braced construction .

Although standardised semi-continuous connections are designed to transfer moment, they are partial strength. The standardised connections may require more expensive fabrication than standardised nominally pinned connections, but due to their partial strength are significantly cheaper than nominally rigid connections.

Design of joints in steel structures in the UK is covered by BS EN 1993-1-8[10] and its UK National Annex[14]

BS EN 1993-1-1[7] requires that connection behaviour be accounted for in frame analysis, if it is significant. Nominally pinned connections and continuous connections may be modelled as pinned and rigid (respectively) in the analysis, but semi-continuous joint behaviour should be taken into account.

BS EN 1993-1-8[10] provides numerical methods to classify a joint, but offers the option that joints may be classified on the basis of previous satisfactory performance. The UK National Annex[14] specifies that joints designed in accordance with the industry standard guides (on nominally pinned and moment-resisting connections) are nominally pinned and rigid respectively. Classification in accordance the guidance in the UK NA is recommended.

[top]Simple connections

Simple connections are nominally pinned connections that transmit end shear only and do not transfer significant moments. This assumption underpins the design of multi-storey braced frames in the UK, in which the beams are designed as simply-supported and the columns are designed for axial load and the small nominal bending moments induced by the end reactions from the beams.

Simple connections include:

[top]Moment-resisting connections

Moment resisting connections are used in continuous frames . Connections in multi-storey frames are most likely to be full depth end plate connections and extended end plate connections.

Connections in portal frames will be haunched at the eaves, often with stiffeners in the column member. The apex connection may have a small haunch or a simple extended end plate.

Moment-resisting connections may also be provided by providing a welded connection between members.

[top]Structural robustness

Main articles: Structural robustness

Building Regulations require that all buildings should be designed to avoid disproportionate collapse. Commonly, this is achieved by designing the joints in a steel frame (the beam-to-column connections and the column splices) for tying forces. Guidance on the design values of tying forces is given in BS EN 1991-1-7[15] Annex A, and its UK National Annex[16] .

Two generic types of strategy for designing robust structures for accidental actions are provided in BS EN 1991-1-7[15] :

  1. Strategies based on identified accidental actions.
  2. Strategies based on unidentified accidental actions.

The robustness requirements relate to the building Class (the type, size and use of a building) and establish required levels of robustness for different building Classes.

Detailed guidance on robustness strategies for steel framed buildings designed in accordance with the Eurocode is available.

[top]Specification of structural steelwork

Main articles: Steelwork specification, Fabrication, Construction

The purpose of a structural steelwork specification is to state what materials and products should be used and how work (fabrication and erection ) should be carried out, in order to ensure that the completed structure meets the designer's assumptions and the client's needs.

Under the Eurocode system, fabrication and erection should comply with the execution standard BS EN 1090[17] which covers material specification, component specification, workmanship and tolerances.

In the UK, the National Structural Steelwork Specification (NSSS) is recommended for use with steel building structures which are identified by the designer as Execution Class 2 (EXC2). The NSSS complements BS EN 1090[17], by providing additional requirements on transfer of information, weld inspection etc, and other requirement which are not addressed in BS EN 1090[17].

[top]BS EN 1090 Execution of steel structures

BS EN 1090 Execution of steel structures and aluminium structures consists of three parts:

  • Part 1[18]: Requirements for conformity assessment of structural components
  • Part 2[19]: Technical requirements for steel structures
  • Part 3[20]: Technical requirements for aluminium structures.

BS EN 1090-2[19] specifies general requirements for the execution of structural steelwork as structures or as manufactured components, depending on the Execution Class of the structure. Four Execution Classes are identified and more onerous fabrication and erection requirements are demanded for the higher numbered Execution Classes.

BS EN 1090-2[19] also gives guidance for the steelwork of steel and concrete composite structures designed in accordance with BS EN 1994[12].

[top]The National Structural Steelwork Specification for Building Construction (NSSS)

The 7th Edition of the NSSS covers structures designed in accordance with either BS 5950 or Eurocode 3 and is for Class 2 structures to be executed in accordance with BS EN 1090[17].

The principal topics covered in the NSSS are as follows:

  • Information required by the Steelwork Contractor
  • Materials
  • Information provided by the Steelwork Contractor
  • Workmanship
  • Welding
  • Bolting
  • Fabrication accuracy
  • Erection
  • Erection accuracy
  • Protective treatment (corrosion and fire)
  • Quality management

These topics present, in a concise manner, the requirements in BS EN 1090[17] for orthodox building (Execution Class 2) structures.

Provision is included for modifications to suit any unorthodox construction.

The 7th Edition of the NSSS also contains an Annex of the requirements for Execution Class 3 for static structures and an Annex giving general guidance on Execution Class 3 for buildings subject to fatigue, such as crane supporting structures.

To ensure that the constructional steelwork industry is ready to meet the new challenges presented by the Building Safety Act 2022[21], BCSA has revised the 7th edition of the National Structural Steelwork Specification for Building Construction. Published on 3rd April 2023, it will come into force on 2nd October 2023. The NSSS Corrigenda (2023) is freely available here

[top]NSSS Annex J - Sustainability Specification

The 1st edition of the Sustainability Specification for structural steelwork for building construction was published by BCSA in January 2022, and is freely available here. This document came into force on 1st June 2022 and will constitute a new Annex J to the National Structural Steelwork Specification for Building Construction (NSSS) when revised in its 8th edition.

Given demands to promote more sustainable construction, and particularly in the context of the climate emergency, this document specifies general requirements and practices for achieving environmentally sustainable steel building construction. Prepared under the guidance of a steering committee comprised of structural steel suppliers, steelwork contractors, designers, and individual sustainability experts from BCSA, SCI, and IStructE, it supplements the requirements of Clauses 1 to 11 of the NSSS and includes guidance on both the sustainable design of structural steelwork and the specification for sustainable fabrication of structural steelwork.

BCSA also published a Model specification is for the purchase of reclaimed steel sections in March 2022, to be used in conjunction with NSSS Annex J – Sustainability Specification. This model specification applies to the contract between the stockholder (the supplier) and the steelwork contractor (the purchaser) for steel products placed on the market as reclaimed structural steel sections for the fabrication of structural steelwork. It covers the selection and acceptance criteria for reclaimed steelwork, the technical specification for those steel products including tolerances on dimensions and shape and material performance requirements, product testing and quality management requirements and documentation.


  1. Guide to Specification, British Council for Offices, 2019
  2. BS EN 1991-1 Eurocode 1. Actions on structures. General actions. (Various Parts). BSI
  3. NA to BS EN 1991-1 UK National Annex to Eurocode 1. Actions on structures. General actions. (Various Parts). BSI
  4. 4.0 4.1 4.2 BS 5950 Structural use of steelwork in building (Various Parts). BSI
  5. 5.0 5.1 5.2 BS EN 1990:2002+A1:2005. Eurocode: Basis of structural design. BSI
  6. NA to BS EN 1990:2002+A1:2005. UK National Annex for Eurocode: Basis of structural design. BSI
  7. 7.0 7.1 7.2 7.3 BS EN 1993-1-1:2005+A1:2014, Eurocode 3: Design of steel structures. General rules and rules for buildings, BSI
  8. BS EN 1993-1-12:2007 Eurocode 3. Design of steel structures. Additional rules for the extension of EN 1993 up to steel grades S 700, BSI.
  9. BS EN 1993-1-5:2006+A2:2019. Eurocode 3: Design of steel structures Plated structural elements. BSI
  10. 10.0 10.1 10.2 BS EN 1993-1-8:2005. Eurocode 3: Design of steel structures. Design of joints, BSI
  11. BS EN 1993-2:2006 Eurocode 3. Design of steel structures. Steel bridges. BSI
  12. 12.0 12.1 12.2 BS EN 1994 Eurocode 4: Design of composite steel and concrete structures. (Various Parts). BSI
  13. BS EN 1993 Eurocode 3: Design of steel structures. (Various Parts) BSI
  14. 14.0 14.1 NA to BS EN 1993-1-8:2005 UK National Annex to Eurocode 3: Design of steel structures. Design of joints, BSI
  15. 15.0 15.1 BS EN 1991-1-7:2006+A1:2014. Eurocode 1: Actions on structures. General actions. Accidental actions. BSI
  16. NA+A1:2014 to BS EN 1991-1-7:2006+A1:2014. UK National Annex to Eurocode 1: Actions on structures. Accidental actions, BSI
  17. 17.0 17.1 17.2 17.3 17.4 BS EN 1090 Execution of steel structures and aluminium structures (Various Parts), BSI.
  18. BS EN 1090-1:2009+A1:2011 Execution of steel structures and aluminium structures. Requirements for conformity assessment of structural components BSI.
  19. 19.0 19.1 19.2 BS EN 1090-2:2018 Execution of steel structures and aluminium structures. Technical requirements for steel structures. BSI.
  20. BS EN 1090-3:2019 Execution of steel structures and aluminium structures. Technical requirements for aluminium structures. BSI.
  21. Building Safety Act 2022

[top]Further reading


Member design tools:

Connection design tools:

Other design tools:

[top]See also

[top]External links
