Market Place Shopping Centre Redevelopment, Bolton

From SteelConstruction.info

Structural Steel Design Awards 2017 - Merit

               Market Place Bolton-1.jpg


The historic ‘Market Place Shopping Centre’ was originally constructed in 1851, utilising a cast iron framework with feature fretwork panels and dowel pinned lattice roof trusses. The redevelopment adds a 9-screen cinema complex extension on the roof of the existing building, and restructures the central feature atrium to provide further restaurants, bars and cafés in the underground ‘Victorian’ arched vaults.

A steel-framed solution was selected to maintain the slimline effect of the existing structure and minimise the weight of the cinema extension. Steel also suited the restrictive nature of the site where the shopping centre had to remain fully operational throughout, in terms of the speed of erection and omission of temporary works.

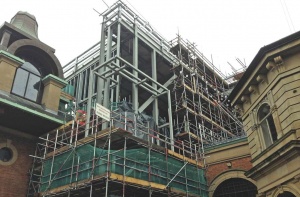

The 250 tonne 30,000ft2 steel-framed cinema extension adopted a beam and column arrangement with long-span rafters, internal clear heights of 10m and structurally independent internal seating support frames and maintenance walkways. S355 grade steel sections were used throughout and the new frame was spliced onto the existing building columns and floor structures.

Internal strengthening and remodelling of the existing four-storey steel framework was needed to carry the additional loading from the cinema extension and amended escalator runs. This included the installation of underslung stiffening beams to the existing floor members, and the incorporation of two new 16m long 762 x 267 UB battening beams to the underside of the existing floor at level 2, to facilitate the removal of the central section of a primary existing steel column, in order to provide clear unrestricted access to Cinema Screens 1 to 4.

               Market Place Bolton-2.jpg


The restructuring of the central atrium area included the provision of a fully welded 21m high exposed ‘feature’ steel lift shaft, infill link bridges and the creation of a new 14m x 10m opening in the ground floor slab.

A feature ‘space-frame’ roof structure at the head of the remodelled central atrium, incorporating ‘T’ section top chords and a suspended circular tie rod bracing system, replicates the original roof detail on the adjacent cast iron framework.

Whilst a tower crane was available for approximately 60% of the upper roof extension, with a working radius of 78m, the balance of the cinema above level 2 had to be installed using a series of spider cranes and Roust-A-Bout lifting frames.

All of the internal steel members for the strengthening and remodelling works between basement and second floor level had to be hoisted through service holes in the existing concrete slabs and ‘hand-balled’ into position.

Architect Wren Architecture and Design
Structural Engineer Ramboll
Steelwork Contractor Shipley Structures Ltd.
Main Contractor McLaren Construction Ltd.
Client Moorgarth Properties Ltd.

Judges' comment

The new steelwork provides for the addition of a nine-screen cinema over a Grade II listed shopping centre. Construction was particularly demanding because the Centre was required to function throughout the contract period. The tower crane reached only 60% of the works, so many components had to be manhandled into position.

The tough logistical challenge was met in a meritorious way.
